Model 475 - Full-scale ranges from 35 mG to 350 kG - DC measurement resolution to 0.02 mG - Basic DC accuracy of ±0.05% - DC to 50 kHz frequency range (probe- dependent) - 15 band-pass and 3 low-pass AC filters - Peak capture to 20 µs pulse widths	Model 455 - Field ranges from 35 mG to 350 kG - DC measurement resolution to 0.02 mG - Basic DC accuracy of ±0.075% - DC to 20 kHz AC frequency range - AC narrow and wide band modes	Model 425 - Field ranges from 350 mG to 350 kG - DC measurement resolution to 4¾ digits (1 part of ±35,000) - Basic DC accuracy of ±0.20% - DC to 10 kHz AC frequency - USB interface - Sort function (displays pass/fail message)

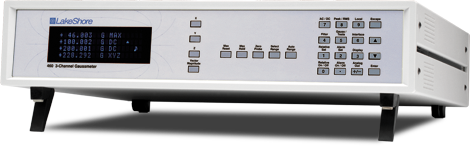

Model 460 - Displays each axis simultaneously - Vector magnitude reading - Resolution to 5¾ digits (1 part out of ±300,000) - Accuracy to ±0.10% of reading - Peak capture - Analog voltage outputs IEEE-488 and serial interface - Can be operated with three individual probes, a single 2-axis probe and one individual probe, or a single 3-axis probe	Model 410 - Ranges (Autoranging): ±200 G, ±2 kG, and ±20 kG ranges - Frequency response: DC and 20 Hz to 10 kHz - Resolution to 3½ digits (1 part out of ±2000) - Custom liquid crystal display - Accuracy: ±2% of reading - Handheld
